Hydro Cooling Kit H200-S Support 36 Units Antminer S21 Hydro S19 Hydro Miners

Hydro Cooling Kit H200-S Support 36 Units Antminer S21 Hydro S19 Hydro Miners 1

Hydro Cooling Kit H200-S Support 36 Units Antminer S21 Hydro S19 Hydro Miners

$15,879.00

Hydro Cooling Kit H200-s offers a robust 200kW cooling capacity, compatible with Antminer rack systems, and is specifically designed for heat recovery in Bitcoin mining operations.

H200-S
Manufacturer Warranty

Trusted By

Specification

Clear

SKU: N/A Category: Warehouses Mining

Description
Additional information

Provide from Home Mining to Large-scale Mining Solutions

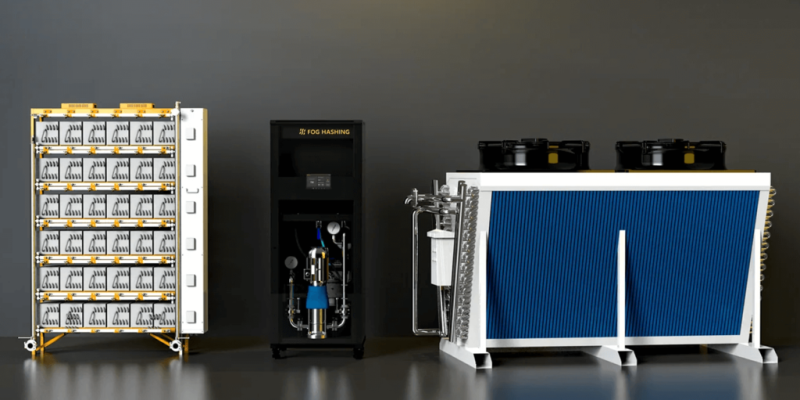

Hydro Cooling System H200-S——Designed for Bitcoin Mining/Antminer S21 S19 Hydro

FogHashing H200 series, a Hydro Cooling equipment specifically designed for Bitcoin mining. Whether you are a professional miner or a beginner, Hydro Cooling Solution is the ideal choice to enhance mining efficiency.

Features

200kW Sufficient Cooling Capacity

Meet the heat dissipation demand of hydro cooling mining system

Compatible with Whatsminer/Antminer Rack System

42U modular rack system design

Designed for Bitcoin Mining Heat Recovery

Solution designed according to heating needs, optional dry cooler or cooling tower

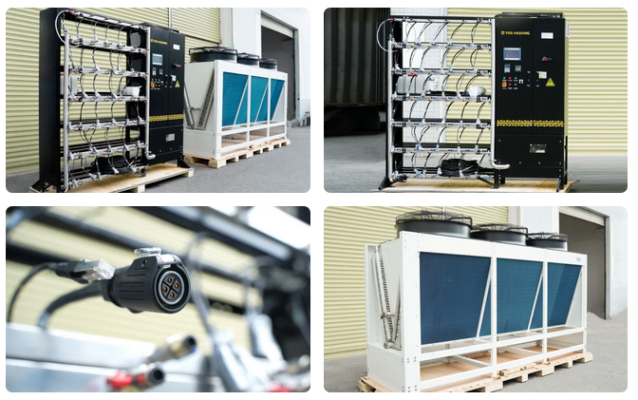

Product Details

Specifications

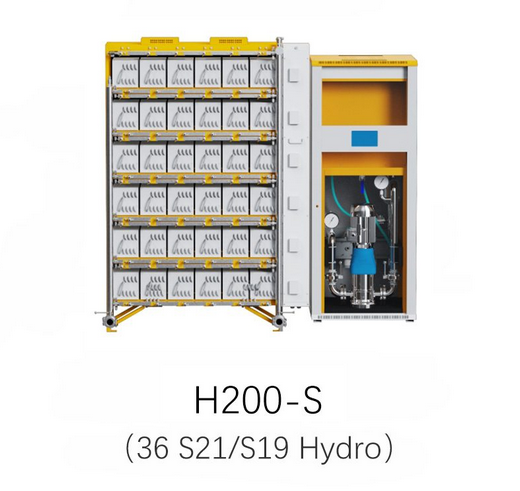

H200-S

Size	1550mm(W)2200mm(H)400mm(D)
System Power Load (MAX)	226kW
Miner Capacity	36 S21/S19 Hydro
Input Voltage	3-Phase 380V-415V, 50/60Hz
PDU	PDC/PDU
Network	1000M Network Switch*2
Operation Temperature	-25 ~ 35℃
Operating Humidity	5%~95%RH
Water Manifold	Stainless Steel
Hose	PE/PTFE Hose + Quick Connects

2. H200-CDU

Size	800mm(W)2100mm(H)1000mm(D)
Cooling Capacity	200kW
Power	3.5kW
Input Voltage	3-Phase 380V-480V, 50/60Hz
Cooling Medium	Pure water/Soften water+Antifreeze +Corrosion Inhibitor
Inlet/Outlet	10°C (Normal) 14°C (High Performance)
Rated Flow Rate	20m³/h
Operating Temperature	-25℃~45℃
Operating Humidity	5%~95%RH
PLC System	Constant flow control with pressure regulation
Communication Method	Modbus-RTU,TCP/IP
Design Pressure	0.3MPa

3. H200-Dry Cooler

Model	FHWDC200
Module	Dry Cooler V Type
Cooling Capacity	200kW
Wight(Empty Load)	800KG
FANs	2
Connection	DN50
Fluid	Coolant
Fluid flowrate	20m³/h
Inlet/Outlet Temperature	55℃/40℃
Ambient temperature	35℃
Fin/Tube Materials	304 Stainless steel，Al-mg/AI
Operating/Maximum Pressure	0.3MPA/1.6MPA

For most areas, the liquid cooling equipment will be shipped to you via sea freight. Ports and receiving points in different regions will incur different shipping charges. It is recommended that you contact customer service to confirm address details and calculate shipping costs before placing an order.

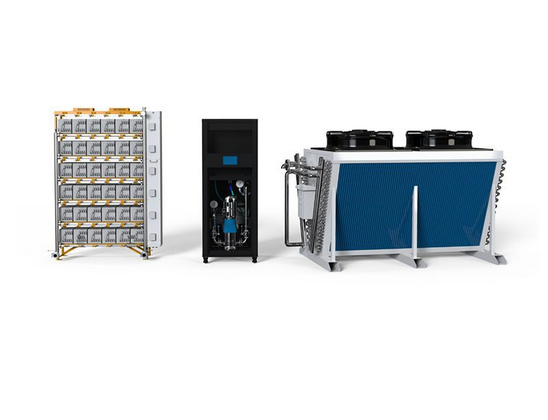

Specification	H200-S Rack+CDU+Dry Cooler
