Natural Gas Generator Solution AP-50Hyd for Hydro-Cooling Mining Systems Support Customization
$185,000.00
- Natural Gas Generator Solution AP-50Hyd
- Manufacturer Warranty
Trusted By

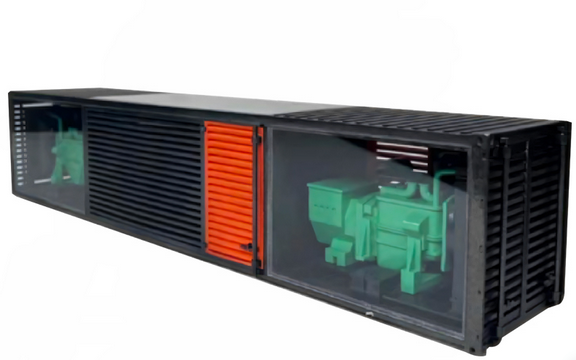

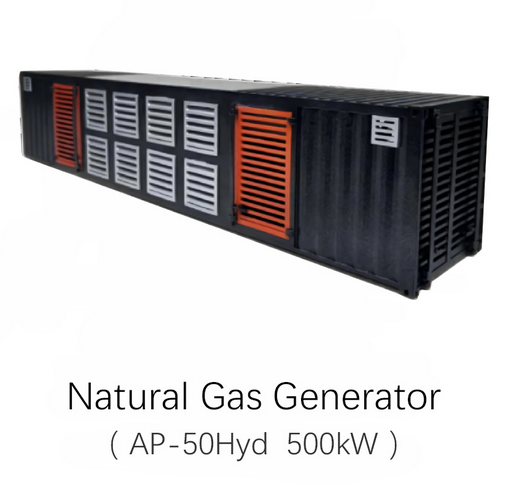

AP-50Hyd 500kW Solution: AP-25 250kW*2+96 Unit Hydro Cooling Container Package
Boost your mining operations with our innovative natural gas generator solution for hydro cooling systems, featuring the dual AP-25 250kW generator sets and a 96-unit hydro cooling mining container. This package is designed to provide stable power and advanced cooling for high-performance mining farms.
This solution delivers superior energy efficiency and cooling performance for miners aiming to reduce costs and increase productivity.
Key Features
1. AP-50Hyd 500kW Solution: Built from two AP-25 250kW containerized generator modules, this modular design ensures reliability, efficient power distribution, and ease of maintenance. Fueled by natural gas, it’s a cost-effective and eco-friendly option for mining.
2. 96-Unit Hydro Cooling Container: Utilizes state-of-the-art hydro cooling technology to maintain optimal operating temperatures, ensuring maximum miner efficiency and extending hardware lifespan.
3. Integrated System: Combines robust power supply with advanced cooling, ideal for handling the demands of next-generation mining equipment.
4. Durable and Scalable: Designed for easy deployment and expansion, making it perfect for both established and growing mining farms.
Specifications
1. AP-50Hyd Solution
| Size | 12192*2438*2896（L*W*Hmm,±5mm) |
| Rack | 8 Rows and 12 Columns Per Group |
| Input Voltage | Three-phase 380-480V 50/60Hz |
| Continuous Power | Three-phase 380-480V 50/60Hz |
| Max Power Load | 630 kW |
| Ambient Temperature | -25°C~35°C |
| Capacity | 96units Antminer Hydro Miners(Support Customization) |
| Network | 5*100M 24*bps Ethernet Switch |
| Cooling System | Hydro Cooling |
| Inlet and Outlet Temp | 50/60°C |
| Input Voltage | Three-phase 350-480V 50/60Hz |
| Output Voltage | Three-phase 350-480V 50/60Hz |
| Certification | ETL |
| Cooling Capacity | 550kW (-30°-45°) |
| Input Voltage | Three-phase 350-480V 50Hz/60Hz |
| Power Consumption | 3kW *6 |
| Noise | <99dB(A)@10m |
2. Generator Set
| Engine Brand | Geely |
| Engine Model | AP-25 |
| Number of Cylinders | 6 |
| Bore/Stroke | 129×165 mm |
| Displacement | 12.94 L |
| Compression Ratio | 10.5:1 |
| Rated Speed | 1500/1800 r/min |
| Intake Type | Turbocharged and Intercooled |
| Cooling Method | Closed-loop forced water cooling |
| Lubrication Method | Pressurized and splash lubrication |
| Oil Pressure | 2.5 bar–5.8 bar |
| Oil Temperature | ≤105°C |
| Oil Capacity | 32 L |
| Firing Order | 1-5-3-6-2-4 |
| Crankshaft Rotation | Counterclockwise |
| Fuel Intake Pressure | 5 kPa |
3. Engine
| Brand | Geely |
| Model | HMT13F.408 30 |
| Continuous Power | 250KW |
| Rated Current | 450A |
| Rated Frequency | 50/60Hz |
| Power Factor | 0.8 |
| Starting Method | DC 24V Electric Start |
| Speed Control Method | Electronic Speed Control |
| Fuel Control Method | Lean Burn, Closed-Loop Control |
| Ignition Method | High-Voltage Spark Plug Ignition |
| Generator Set Operation Mode | One-Key Auto Start |
| Oil Consumption Rate | ≤0.3g/kWh |
| Noise | 10 meters ≤ 101 dB(A) |
| NOx Emissions | 1.347g/kWh |
| Electrical Efficiency | 35% |
| Thermal Efficiency | 47% |
| Electrical Certification | ETL |
| Generator Set Dimensions | 3100X1330X1590mm |
| Generator Set Weight | 3140kg |
| Number of Phases and Connection Method | Three-Phase Four-Wire, Star Connection |
| Cooling Method | Pen-type Circulating Forced Water Cooling |
| Air Source Inlet Pressure | 0.4Mpa |
| Air Source Outlet Pressure | 5-10Kpa |
4. Generator
| Generator Brand | Stanford generator |
| Model | XSA4E |
| Number of Phases | Three-Phase Four-Wire |
| Insulation Class | H |
| Protection Level | IP23 |
| Excitation Method | Brushless Excitation |
| Continuous Power | 250 kW |
| Rated Speed | 1500/1800 r/min |
| Frequency | 50/60 Hz |
| Voltage | 400 V |
| Current | 450 A |
| Waveform | Sine Wave |
For most areas, the liquid cooling equipment will be shipped to you via sea freight. Ports and receiving points in different regions will incur different shipping charges. It is recommended that you contact customer service to confirm address details and calculate shipping costs before placing an order.
